EPDM/NBR 0.6/1Kv 110°C
High-performance single core cable with EPDM insulation and NBR sheath, engineered for extreme flexibility and high temperature operation up to 110 °C. With excellent resistance to abrasion, chemicals, ozone and weathering, this cable reliably supports flexible power wiring, switchboards, bus droppers and pump connections in demanding environments. Ideal for industrial systems and applications requiring superior heat and mechanical durability.

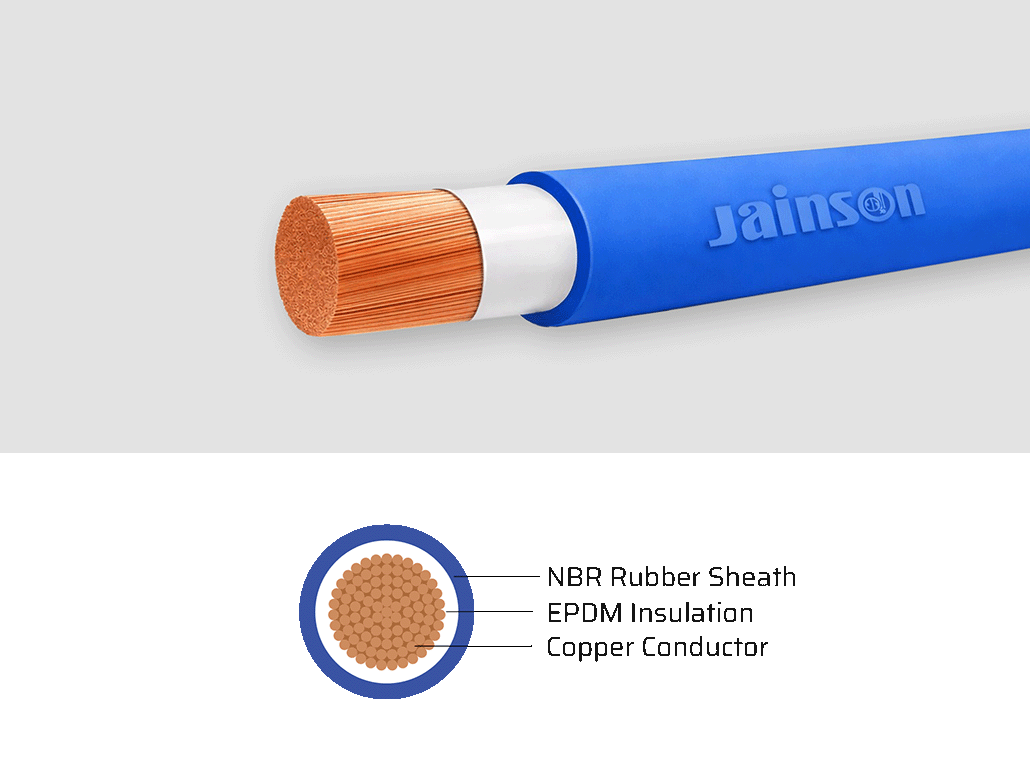

Cable Structure
Generally confirming to IEC 60228, IEC60502-1, AS/NZ500:2003 & AS/NZS60079, CE Directive 72/23/EEC
Conductor : EC
copper class 5 and class 6 generally conforms to IEC 60228, DIN VDE
0281
Insulation :
EPDM
Sheath : Flexible
Nitrile rubber (NBR) Orange, Black, Red, Blue Jacket
*Any other Color on specific request can also be supplied
Technical Data
Operating Temp :
-40°c to max.+110°C
Nominal Voltage
:1100 V
Test Voltage : 3000
V
Insulation
resistance : Min. 10 MΩ x km
Min. bending radius
: 6 x Cable Diameter
Flame propagation :
Flame retardant test as per IEC 60332-1
Application
EPDM/NBR 0.6/1kV
110°C
- For applications where extreme flexibility is required - high current capacity. Power - Switchboards, flexible droppers from bus bars, transformers, load banks or other equipment requiring fixed or flexible wiring. Pumping - Suitable for permanent submersion
- For applications where extreme flexibility is required - high current capacity. Power - Switchboards, flexible droppers from bus bars, transformers, load banks or other equipment requiring fixed or flexible wiring. Pumping - Suitable for permanent submersion
Standard length cable
packing:
- Coils 100, 200,300 and 500 m in wooden reels
- Coils 100, 200,300 and 500 m in wooden reels
Cable Features
Ultra high performance flexible for longer life and added safety
High elasticity & high temperature resistant
Outstanding toughness & durability
High resistance to cuts, tears & abrasion
Resistance to oil, solvents and chemicals
Excellent ozone and weather resistant
Technical DataTable - EPDM/NBR single core double insulated cable
| Cross Sectional Area | Copper Construction | Inner Dia. | Outer Dia Appx. | Max. Conductor Resistance at 20˚C |
| Sq. mm. | Nos. / Dia. mm | mm | mm | Ω/km |
| 10 | 322 / 0.20 | 6.30 | 9.90 | 1.910 |
| 16 | 511 / 0.20 | 8.00 | 10.70 | 1.210 |
| 25 | 798 / 0.20 | 9.50 | 12.10 | 0.780 |
| 35 | 1121 / 0.20 | 11.00 | 14.20 | 0.554 |
| 50 | 1596 / 0.20 | 12.30 | 16.30 | 0.386 |
| 70 | 2220 / 0.20 | 14.40 | 18.70 | 0.272 |
| 95 | 1349 / 0.30 | 16.60 | 20.80 | 0.206 |
| 120 | 608 / 0.50 | 18.20 | 23.00 | 0.161 |
| 150 | 760 / 0.50 | 21.10 | 27.60 | 0.129 |
| 185 | 943 / 0.50 | 23.80 | 30.80 | 0.106 |
| 240 | 1225 / 0.50 | 26.80 | 34.00 | 0.0801 |
| 300 | 1498 / 0.50 | 30.30 | 37.50 | 0.0641 |
| 400 | 2035 / 0.50 | 33.60 | 41.30 | 0.0486 |
- The number of wires is approximate and wire diameter is nominal; they shall be such as to satisfy the requirements of conductor resistance of IEC 60228 / DIN VDE 0295 / IS 8130 / BS 6360
- In view of continuous improvements in our design and process, specifications given here in are subject change without notice.
All are flexible conductor
Insulation material is EPR
Sheath material is NBR
